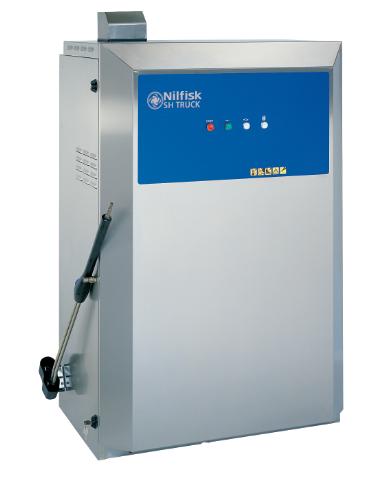

SH TRUCK, 107370830

Efficient outdoor cleaning of your vehicle fleet

PRODUCT INFORMATION
The SH TRUCK is a simple robust and corrosion proof stationary unit for permanent outdoor placement. Enabling constant cleaning of trucks, vans, commercial and constrution vehicles, the SH TRUCK is frost protected for use even in winter.

Placed in a parking area or forecourt, the SH TRUCK contains allsettings and adjustmentsinside the lockable cabinet. The unit is then easily opertional for multiple users with 4 push button function to select on-off, hot water, detergent without needing to adjust each time.

The SH TRUCK is equipped with the high efficiency EcoPower boiler offering reduced fuel consumption and costs. The unit is also equipped with cabinet insulation and electrical powered heater fan for frost protection and all year round cleaning.

Stainless steel robust design against corrosion
EcoPower boiler for reduced fuel consumption costs
SilentPower, low noise level with 1450 rpm motor pump units
Simple control panel with only 4 buttons
Ergonomic accessories for added user experience
Internal frost protection down to minus 20°C
Simple control panel
Compact design

TECHNICAL SPECIFICATIONS
Selected product
Product details Model No. 107370830 Model No. 107370810 Model No. 107370840
Pump pressure (bar/MPa) 180/18 175/17.5 85/8.5
Recommended avg. hours of use per day 5 7
Cleaning impact (kg/force) 4.9 6.3 3
Water flow Qmax/Qiec (l/h) 970/930 1260/1170 850/800
Max. inlet temperature (°C) 30 30 30
Water temperature (water/steam) (°C) 90/150 90/150 90/150
Pump (RPM) 1450 1450 1450
Weight (kg) 227 262 217
Voltage/phase/frequency/current (V/~/Hz/A) 400/3/50/18 400/3/50/17.5 230/1/50/15.2
Fuel tank (l) 33 33 33
Detergent tank (l) 2 x 25 2 x 25 2 x 25
Ceramic pistons 3 4 3
Nozzle size .0550 .0680 .0700
Sound power level, re Directive 2000/14/EU (LwA) 90 92 85
Fuel consumption, motor (Diesel) (kg/h) 4.3 5.3 3.8
Length x width x height (mm) 1025x715x1670 1
