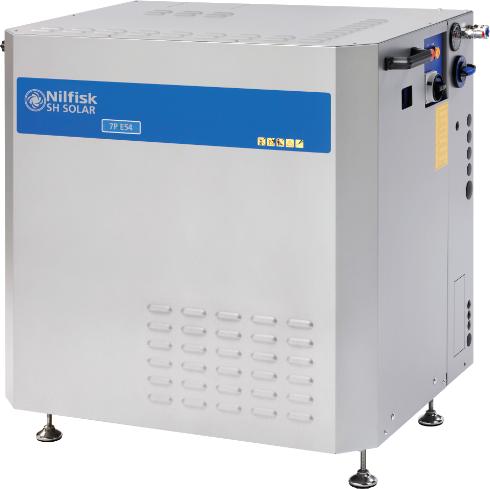

SH SOLAR E, 107370260

Electrically powered high pressure washers

PRODUCT INFORMATION
Electrical powered stationary heating for maximum efficiency in the automotive, industrial, food and shipping sectors. Electrical heating is exhaust gas and pollution free.

The SH SOLAR E line is equipped a large 119 l heating tank and can be produced in several heating sizes from 18 kW to 54 kW depending upon the temperature requirements and available electrical network. Electrical heating is pollution free. The integrated PLC enables machines to be personalized with a range of factory mounted options.

A feeder pump prior to the high pressure pump ensures that the machine can reliably produce a max temp of 85°C, pre-heated in the tank placed before the pump. Thanks to the pre-heating tank, hot water is available as soon as the spray gun is activated.

Expandable control technology with PLC and special options
Automatic diagnosis and fault finding
Pollution free, heating system
Galvanised steel frame and cabinet
Reduced running and service costs
Large 119 L heating tank for excellent heating capacity
Available up to 54 kW heating
C3 longlife pump with 4 ceramic pistons

TECHNICAL SPECIFICATIONS
Selected product
Product details Model No. 107370260 Model No. 107370270 Model No. 107370272
Pump pressure (bar/MPa) 135/13.5 170/17 170/17
Recommended avg. hours of use per day 7 7 7
Cleaning impact (kg/force) 3.8 5.8 5.8
Water flow Qmax/Qiec (l/h) 875/810 1200/1110 1200/1110
Max. inlet temperature (°C) 85 85 85
Water temperature, ΔT at full flow (°C) 19 14 14
Max. temperature (°C) 85 85 85
Weight (kg) 150 155 158
Voltage/phase/frequency/current (V/~/Hz/A) 400/3/50/36 400/3/50/39 440/3/60
Min. inlet water pressure at full flow (bar) 1 1 1
Ceramic pistons 4 4 4
Sound pressure level (dB(A)) 92 92 97
Nozzle size .0530 .0680 .0680
Length x width x height (mm) 670x900x1077 670x900x1077 670x900x1077
Power consumption (kW) 5.8 + 18 7.5 + 18 7.5 + 18
