Cold-water pressure washer for daily commercial use.
With greatest possible manoeuvrability, this unit is a credit to the compact class.

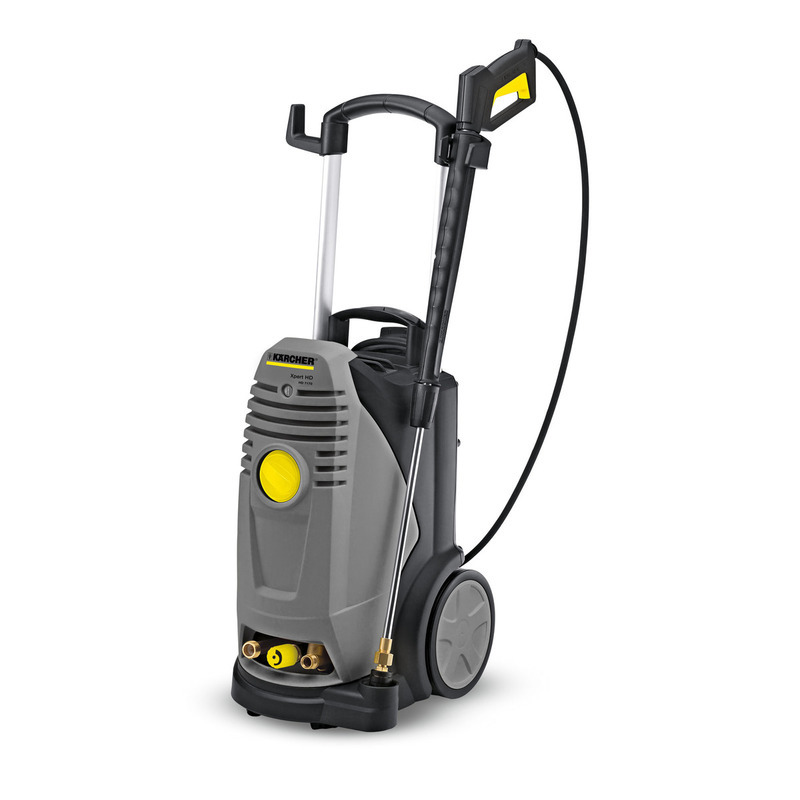

This cold-water pressure washer with an alternating current drive unit is the ideal entry-level model for commercial end-users. The upright HD-Xpert 7170 offers impressive mobility and compactness with its aluminum push handle It boast familiar KÄRCHER features such as a full shock-resistant plastic covering that protects the high-pressure pump from damage and soiling. Other very good features are a power cord storage (with plug lock) and a nozzle compartment arranged practically on the back of the unit. The cleaner comes with a three-way nozzle that enables the water jet to be adjusted quickly and easily. You can choose between a high-pressure pencil jet, a high-pressure fan jet (25°) and a low-pressure fan jet. The low-pressure fan jet (40°) is used for dispensing cleaning agents. The cleaning agent metering valve enables the cleaning agent to be mixed continuously with the high-pressure jet. The three-piston axial pump with stainless steel pistons and a brass cylinder head guarantees a long service life and low susceptibility to faults. The special feature of this newly developed pump is that both the water inlet and the high-pressure outlet are made of brass, which makes them highly resistant to fracture and corrosion.
SPECIFICATIONS
Technical data
Current type (Ph/V/Hz) 1 / 230 / 50
Flow rate (l/h) 220 – 480
Working pressure (bar/MPa) 165 / 16.5
Max. pressure (bar) 210
Connection load (kW) 3.2
Weight (kg) 23
Dimensions (L × W × H) (mm) 360 x 375 x 925
Equipment
Spray gun, Extended high-pressure trigger gun
High-pressure hose, 10 m
Spray lance, 380 mm
Triple nozzle (0°/25°/40°), Manual
Anti-twist system (AVS)
Pressure cut-off
