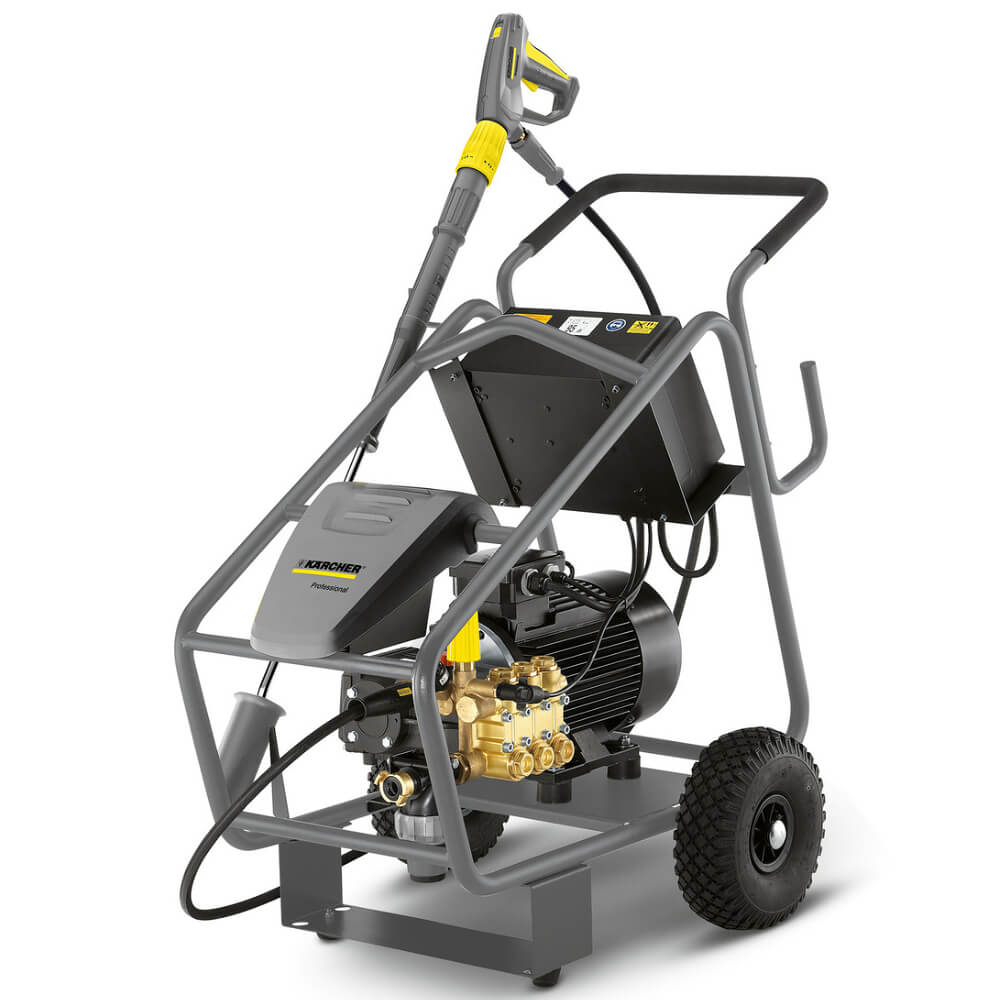

Ideal for water-intensive cleaning tasks: the HD 25/15-4 Cage Plus high-pressure cleaner with 150 bar working pressure, a water flow rate of 2,500 l/h and a stainless steel frame.

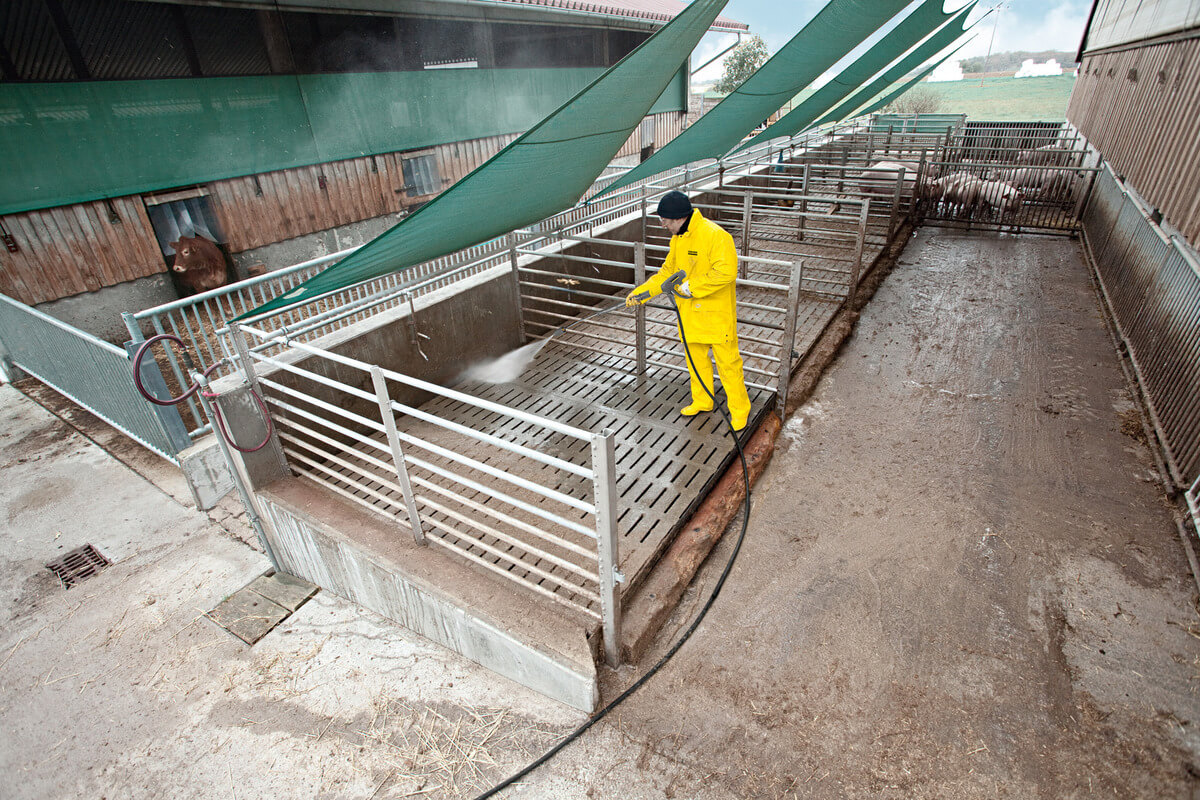

Our mobile specialist for cleaning tasks in the toughest conditions, for example in agriculture or the construction sector: HD 25/15-4 Cage Plus.
This three-phase current, unheated high-pressure cleaner impresses in very water-intensive applications thanks to our high-quality crankshaft pump, with an enormous water flow rate of up to 2,500 litres per hour. With a working pressure of 150 bar, it can tackle even the most extreme dirt typically found in large stables, on large construction sites, in earthworks and excavation, or in stone-crushing plants or quarries.
Innovations such as the EASY! Lock quick-release fasteners support the operator enormously.
Compared to conventional screw connections, they make handling five times faster, without compromising on robustness and longevity. And last but not least, puncture-resistant wheels ensure that the machine is easy to operate and move, even on rough terrain.
FEATURES AND BENEFITS

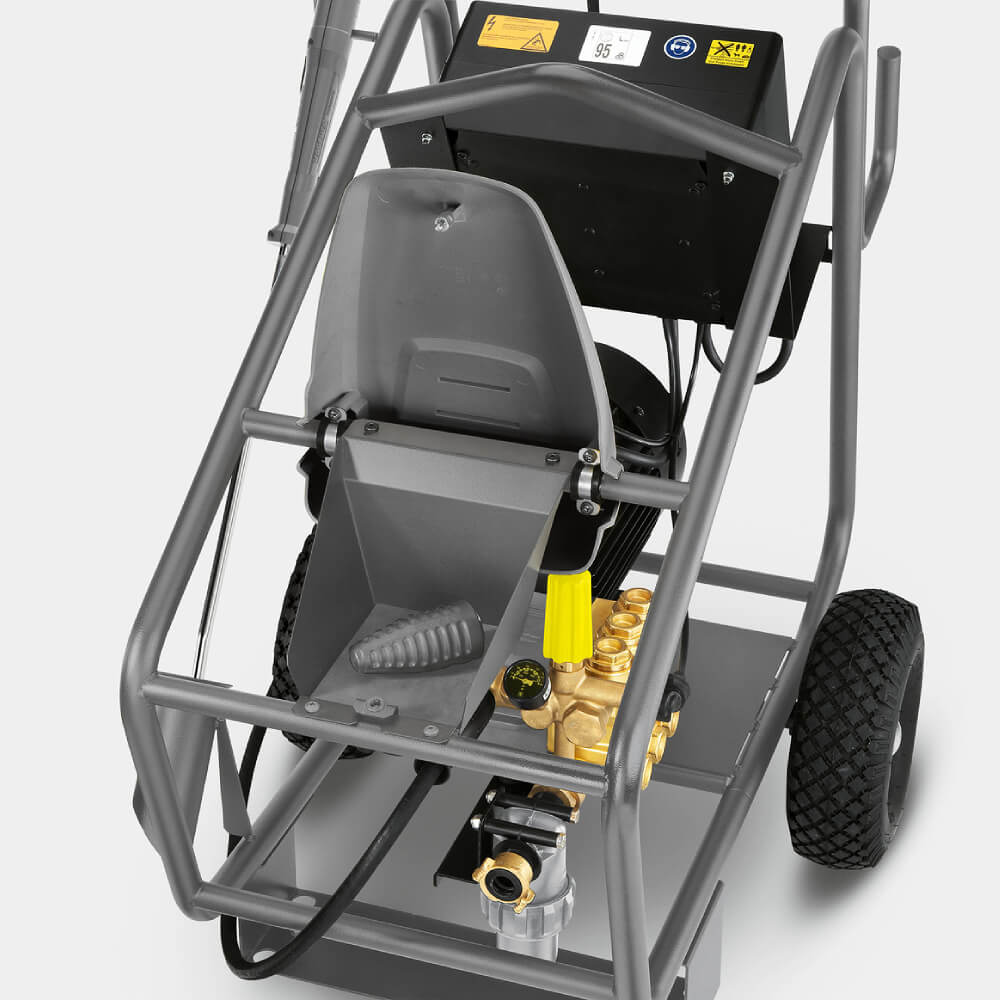

Cage frame
Robust outer pipe frame.
With integrated crane hook and accessory compartment.
Protection against damage to the machine.
Electronic monitoring for greater operational safety.
Leakage protection and soft start.
Overvoltage and under voltage protection.
Protection against two-phase short circuit.
SPECIFICATIONS
Technical data
Current type (Ph/V/Hz) 3 / 400 / 50
Flow rate (l/h) 500 – 2500
Working pressure (bar/MPa) 30 – 150 / 3 – 15
Max. pressure (bar/MPa) 190 / 19
Connection load (kW) 12.5
Power cable (m) 5
Weight (kg) 120
Dimensions (L × W × H) (mm) 957 x 686 x 1080
Equipment
Spray gun, EASY!Force Advanced
High-pressure hose, 15 m
Spray lance, 1050 mm
Power nozzle
Dirt blaster
Pressure cut-off
Infinitely variable pressure and water flow regulation
High-pressure spray lance
Servo Control
