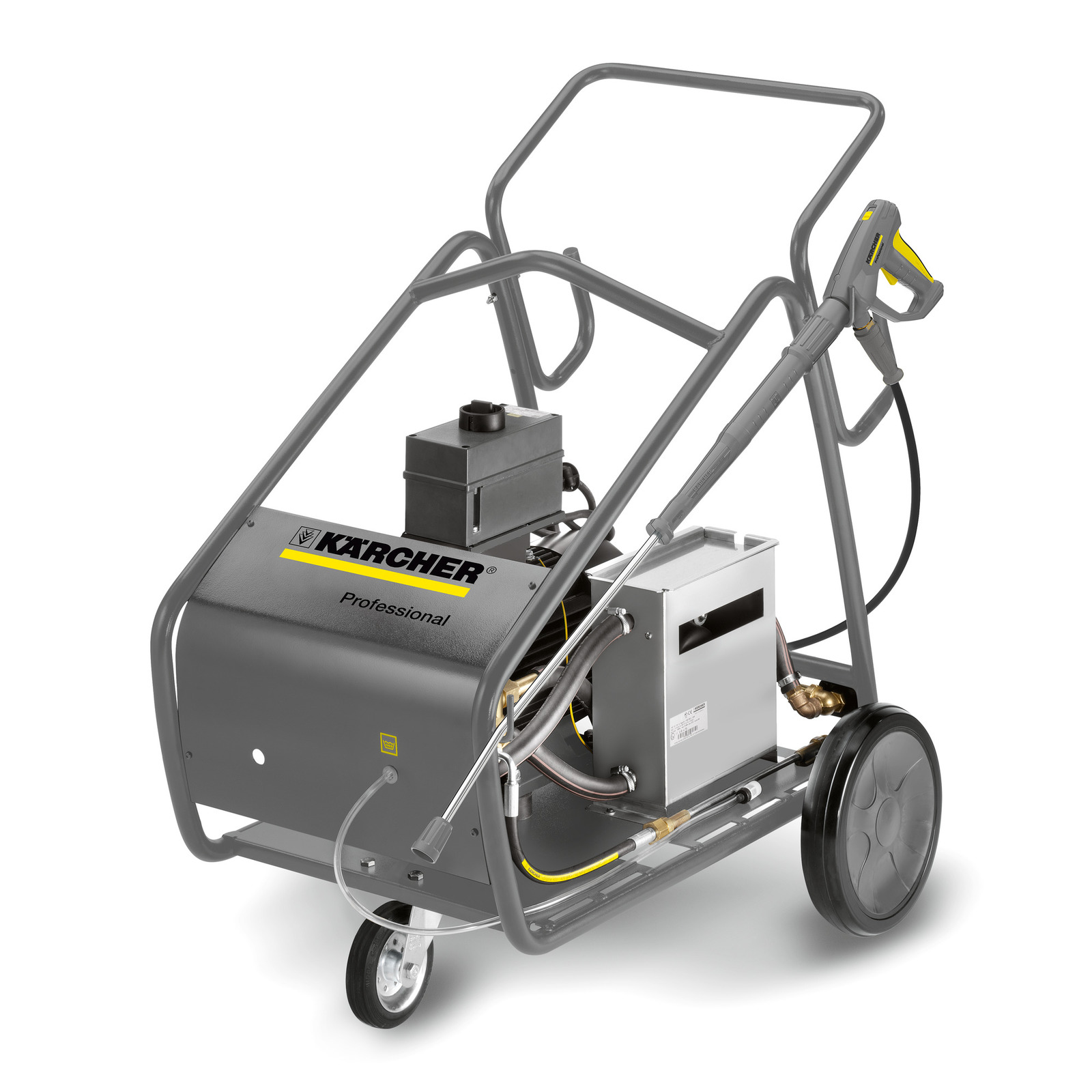

HIGH PRESSURE WASHER HD 10/16-4 Cage Ex, 1.353-904.0

The explosion-proof HD 10/16-4 Cage Ex high-pressure cleaner was developed specially for use in ATEX zones. Working pressure 160 bar, corresponding to a water flow of 1,000 litres per hour.

Potentially explosive areas, “ATEX zones”, place particular demands on components and materials. Our HD 10/16-4 Cage Ex high-pressure cleaner meets these requirements and complies with all of the stringent safety regulations in its explosion-proof design. With a working pressure of 160 bar and water flow rate of around 1,000 litres per hour, the machine is designed for a variety of cleaning tasks. Moreover, it incorporates outstanding technical innovations that make cleaning effortless and take handling to a new level: the EASY!Force high-pressure gun and EASY!Lock quick-release fasteners. While the EASY!Force high-pressure gun makes use of the recoil force of the high-pressure jet to reduce the holding force to zero, the EASY!Lock quick-release fasteners enable handling that is five times faster than with conventional screw connections, without losing any robustness or longevity. The HD 10/16-4 Cage Ex combines maximum safety with outstanding cleaning performance and durable technology.

FEATURES AND BENEFITS
Powder-coated cage frame, electrically conductive
Robust tubular steel frame.
With integrated crane hook.
Protection against damage to the machine.
Explosion-proof equipment
Conductive rubber tyres.
Surface temperature always under 200°C.
SPECIFICATIONS
Technical data
Current type (Ph/V/Hz) 3 / 400 / 50
Flow rate (l/h) 1000
Working pressure (bar/MPa) 160 / 16
Max. pressure (bar/MPa) 220 / 22
Connection load (kW) 5.5
Weight (kg) 122.6
Dimensions (L × W × H) (mm) 980 x 720 x 1100
Equipment
Spray gun, EASY!Force Ex protection
High-pressure hose, 10 m
Spray lance, 1050 mm
Power nozzle
Pressure cut-off
High-pressure spray lance
Atex Zone
