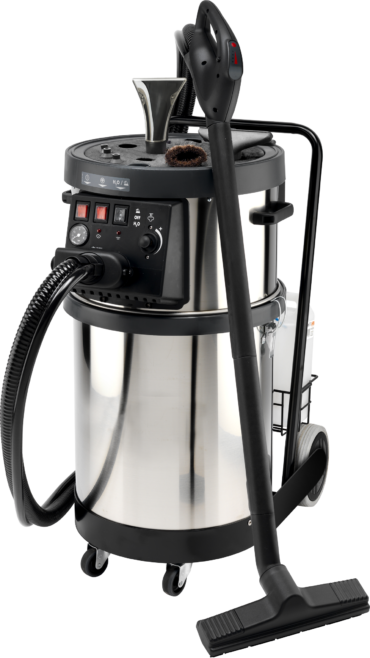

FASA UPDS FUJI, 8.455.0001

UPDS FUJI

FEATURES
Steam: Vertical burner with high thermal efficiency steel coil. Auxiliary
motor for burner. Discharge valve: allows a complete discharge of the
boiler. Temperature regulator: the temperature is set up by an electronic
regulator. Steam pressure gauge. Temperature regulator. Low fuel lamp.
Double pipe gasoil pump. User friendly control panel. Unit can be
continually refilled. Safety solenoid valve. Device for cleaning hot water
mixed with steam.
High pressure water: Three ceramic coated pistons brass linear pump
head with built-in by-pass valve.

TECHNICAL CHARACTERISTICS
Absorbed power 3000+350 W/230V-50 Hz Kw/V-Ph1
Max pressure 150 bar
Water tank capacity 18 l.
Connected load 350 W
Fuel / Water tank 18/18 / lt
Fuel diesel
Fuel consumption 2.83 lt/h
Pre-heating time 2 minuti min.
Steam production 50/90 kg/h
Steam pressure 10 bar
Steam temperature 178 °C
