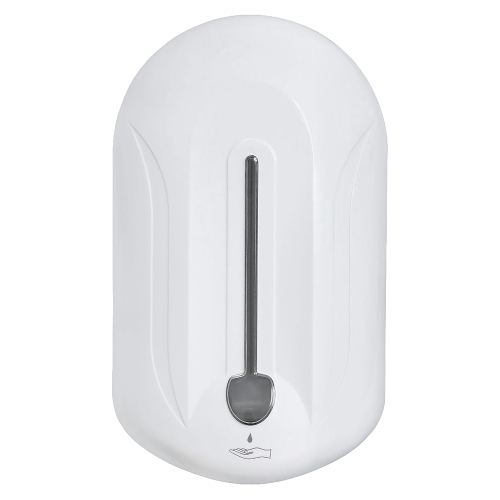

Suitable for everyday and professional use, Automatic IR soap and hand sanitizer dispensers conveniently mount on any wall, providing a touch-free way for customers, employees, and guests to quickly and hygienically wash or disinfect, killing up to 99.9% of germs.
Features include a smart infrared sensor, durable and stain-resistant ABS plastic shell with a stylish soap/sanitizer viewing window, an environmentally-friendly 1100ml induction bottle system to efficiently clear or replace liquid, and key-locked protection.
With a space-saving design powered by 4 alkaline AA batteries, No-touch soap/sanitizer dispensers help eliminate cross-contamination in washrooms, kitchens, cafeterias, lobbies, entrance ways, communal and high traffic areas including restaurants, schools, hospitals, shopping malls, hotels, offices, and households.
Automatic IR dispensers are available in liquid (XDQ110 spray nozzle) or gel (ZYQ-110 drop nozzle) soap/sanitizer options.
* 4 AA batteries not included
Please Note

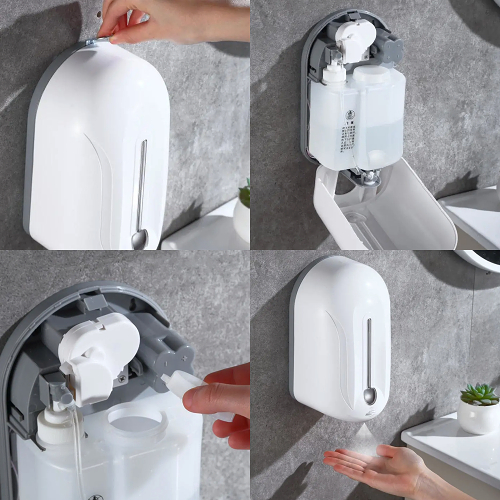

- Initial setup requires several spray/drop attempts to exhaust the air in the pump and work the liquid/gel through the line.
- Soap and sanitizer are not included.
Features
- No-touch operation
- Infrared sensor with good interference resistant capacity
- Compatible with liquid or gel soaps and sanitizers
- Large 1100ml capacity tank with 1ml spray/drop
- Easy to install, refill, and does not take up space
- Stylish sanitizer viewing window
- Non-drip pump mechanism
- One spray/drop every 3-second interval, max 10 doses for a single operation
- Powered by 4 alkaline AA batteries with a lifespan up to 130,000 cycles (1-2 years)
- Lockable cover to deter theft and maintain content integrity
- Durable and stain-resistant ABS plastic construction
Usage Notes
- For avoiding improper operation, leave at least 40cm of space under the dispenser.
- DO NOT install the dispenser in places that have strong direct sunlight or above things that have a high reflection.
- Prevent anything from blocking the spray nozzle.
- Keep the soap/sanitizer clean without any impurities.
- DO NOT splash the sanitizer directly.
- DO NOT use any kind of thinner or chemical liquid which may damage the surface to clean the dispenser.
- DO NOT use any kind of ropy liquid.
- Improper use or installation will void the warranty.
Installation Notes
- READ BEFORE INSTALLING – For best results, please read all included documentation before installation.
- Be careful removing the ABS cover to avoid damaging the dispenser’s plastic hinges.
- Do not fully tighten until all 4 screws have been threaded.
SPECIFICATIONS
| Manufacturer | Taishan Jieda Electrical Co., Ltd. |
| Model Number | Spray Model: XDQ110 Drop Model: ZYQ-110 |
| Type | Automatic Soap/Sanitizer Dispenser |
| Sensor | Infrared |
| Voltage | DC 4 x 1.5V LR6 |
| Power | 4 Alkaline AA Batteries |
| Capacity | 1100 ml |
| Induction Range | Approx. 8cm |
| Drop Volume | 1 ml |
| Style | One Head |
| Material | ABS Plastic |
| Color | White, Gray |
| Installation | Wall Mounted |
| Dimensions | 140 x 107 x 235 mm |
| Weight | 1.5 lbs (0.7kg) |
| Country of Origin | China |
PACKAGE CONTENTS
- 1100 ml Automatic IR Hand Soap/Sanitizer Dispenser (1)
- Dispenser Key (1)
- 4×16 Screws (4)
- 6mm Wall Plugs (4)
- User Manual (1)
