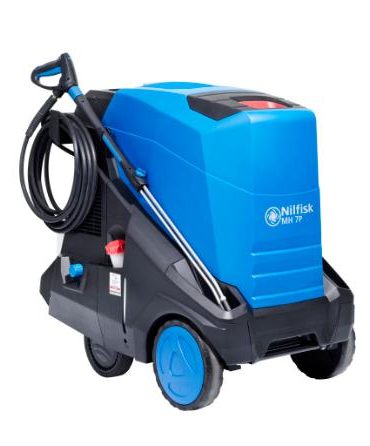

MH 7P, 107146980

Heavy duty and efficient hot water cleaning for intense use

PRODUCT INFORMATION
MH 7P is the optimal solution for heavy duty, industrial cleaning tasks. The 4 piston pump and high power boiler system offer unbeatable cleaning effect and long lifetime. The flow activated unloader system adds a new level of reliability and comfort.

The tough and robust MH 7P series combines low running costs, ease of use, best in class mobility and high cleaning efficiency. The most effective tool for heavy duty, industrial hot water cleaning in any sector. The MH 7P series features low running and maintenance costs, robustness, durability and high cleaning efficiency. Heating costs are reduced with the award-winning EcoPower boiler system with > 92% heating efficiency and high heating power levels for even hotter water. Sound level is reduced and lifetime extended with the famous C3 pump and 1450 rpm motor.

EcoPower boiler with EcoMode function
EcoPower boiler >92% efficiency giving reduced fuel costs
Brass pump head
4 ceramic pistons
Flow activated unloader system
Innovative design with 4 big wheels
Easy to transport, can even be pushed/pulled across uneven surfaces
Oil tank and oil sight
Low pump oil warning system
Low fuel warning system
Onboard diagnostics function
Easy to use control panel

TECHNICAL SPECIFICATIONS
Selected product
Product details Model No. 107146980 Model No. 107146981 Model No. 107146982
Weight (kg) 195 199 204
Length x width x height (mm) 1188x700x1045 1188x700x1045 1188x700x1045
Recommended avg. hours of use per day 7 7 7
Fuel tank (l) 30 30 30
Pump pressure (bar/MPa) 180/18 180/18 180/18
Cleaning impact (kg/force) 6.3 6.3 6.3
Water flow Qmax/Qiec (l/h) 1260/1170 1260/1170 1260/1170
Max. inlet temperature (°C) 40 40 40
Water temperature (water/steam) (°C) 90/150 90/150 90/150
Power consumption (kW) 7.6 7.7 7.6
Voltage/phase/frequency/current (V/~/Hz/A) 400/3/50/13.5 230-400/3/50/14 400/3/50/13.5
Fuel consumption at ΔT=
