Specifications:
| Model | IV7W |
| Video test | |
| Video System | NTSC/PAL Automatically recognize |
| Video level | 1VPP |
| Display screen | 4.3 inch LCD RGB 480 * 272 (QVGA) resolution, 64K color |
| Screen adjustment | Video display brightness, contrast, color saturation adjustable,
LCD backlight brightness adjustable |
| Video input / output | 1 channel BNC Video IN |
| HD AHD ，TVI Test | |
| SD signal Format | NTSC,PAL |
| Video signal | HD AHD,TVI,CVI,CVBS |
| Resolution | D1,720P,960p,1080P,3MP,4MP,5MP |
| MAX Support 5MP,4MP AHD 20FPS ; 5MP 4MP TVI 20FPS | |
| Signal Level | 1Vpp |
| 12V power output | |
| Power output | Temporary power output 12V 1A DC |
| USBX1 5V1A output | |
| Audio test | |
| Audio test | Input audio signal, and played on the internal speaker |
| Power supply | |
| External power supply | DC 5V（2A） |
| Battery-powered | Built-in 3.7V li-polymer battery, Capacity 2600mAh |
| Charge | Charge time 3-4 hours Battery power time 8 hours |
| Power saving features | Low power consumption, automatic power off, Real-time display of battery level |
| System settings | |
| Language settings | Chinese, English user selectable |
| Auto power off | Disable / 5-60 minutes |
| Cable test | |
| cable test | Test any two or more wire cable Display connect sequence and remote number |
| LED Light | 1*35lm LED light |
| Working environment and Specifications | -20℃—+70℃/30%-90%Rh |

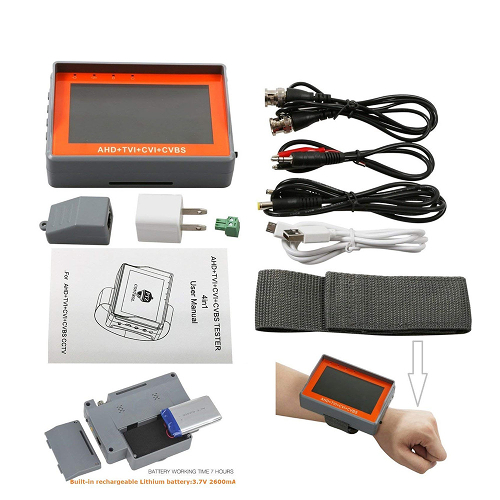

Packing list:
HD AHD+TVI+CVI+CVBS CCTV Tester x 1
AC/DC Adapter x 1
Power Output Cable x1
Transformer x 1
A/V Cable x 1
Video Cable x 1
Date Cable x 1
Wristbands x 1
